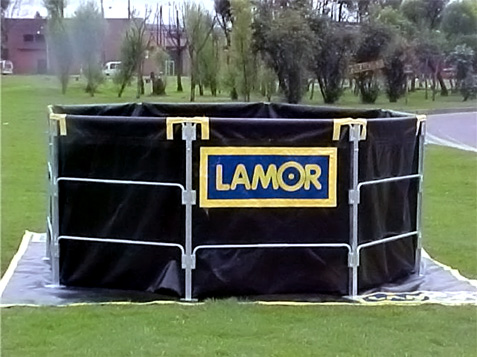

The Lamor Collapsible Tank (LCT 11.4m3) fulfills the basic need to store recovered oil in a quick and efficient manner. The LCT is so designed that it represents a highly versatile method of tackling the challenges presented when having to recover and store oil in remote locations. The hexagonal shape of the tank allows for even distribution of weight.
The LCT fabric is constructed from durable PVC with excellent resistance to the effects of hydrocarbons and U.V. radiation. The tubular tank frame is manufactured from light weight aluminum and provides a strong support for the tank fabric. Each vertical supporting arm has a 'footprint' base plate and is additionally supported by a horizontal tensioning section.
The LCT has been designed for simple assembly as a modular system; the tank fabric is laid out on the ground then drawn up around the supporting frame for final securing in position.
In addition to the benefit of being a true portable collapsible tank the Lamor LCT 11.4 requires no tools to assemble and other than cleaning is totally maintenance free.
| Height | 1200mm |
| Weight | 125kg |
| Diameter | 3300mm |
| Capacity | 11400 litre |

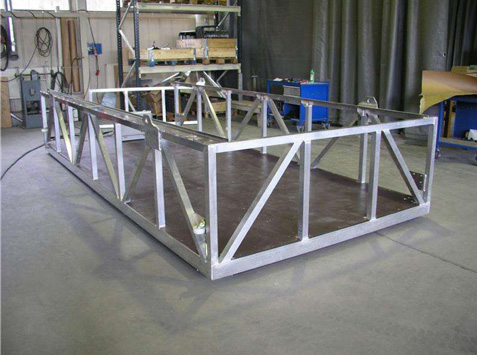

The Lamor Boom Storage Rack (LSR) is a light weight frame structure for storing and transportation of boom sections. It facilitates rapid assembly and deployment of oil booms, and can be vertically stacked for easy storage or shipment. The Lamor LSR comprises an aluminum frame with plywood floor and lifting eyes, both the rack and boom can be protected with a PVC cover during transportation and storage.
It has been proven that the serviceable life of foam boom can be greatly extended if stored correctly. Lamor LSR is a vital component when safe-guarding your investment and can be tailor made to suit the different boom lengths available.
| Length | 2000mm |
| Width | 2000mm |
| Height | 1175mm |
| Capacity | 100m |

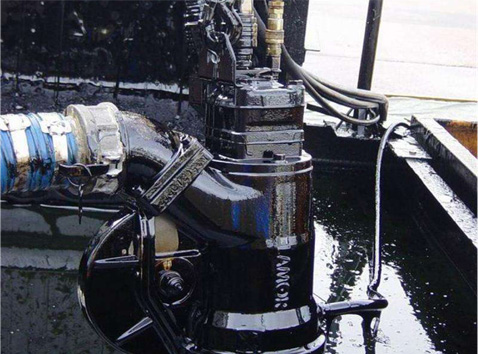

The Lamor GT C 140 is designed for efficient handling of viscous liquids, bulky solids and shear-sensitive liquids. The Lamar GTC range of centrifugal-screw pumps are driven by a built-on axial hydraulic motor rated accordingly to each model.
The Hidrostal design centrifugal screw combines the properties of the screw pump with those of the centrifugal pump, which enables handling of medium to high viscosity liquids while limiting the effects of emulsification or clogging. Both the centrifugal-screw and drive flange are bolted and keyed onto the hydraulic motor shaft respectively, with the drive flange transmitting power to the centrifugal screw via a lock pin.
Hydraulic oil flows into the motor through the flexible extension hose and circulates through via a separate hydraulic return hose. The pumps hydraulic connection is fitted with a non return valve to permit free rotation of the pump when there is no hydraulic supply.
The Lamor GT C 140 can handle oil with a maximum viscosity of 10,000 Cst making it an ideal component for medium-heavy oil skimmers such as the Lamor multi-skimmer.
| Length | 305mm |
| Width | 305mm |
| Height | 372mm |
| Weight | 30kg |
| Hydraulic Pressure | 220 bar |
| Hydraulic Flow | 54 l/min |
| Power Requirement | 20 kW |
| Discharge Pressure | 4 bar |
The Lamor GT A 50 pump is a multi purpose submersible Archimedes screw pump with a pumping capacity of 50m3/h. This pump has been designed for use in skimmers and transfer or offloading pump applications and is able to pump a wide range of liquids ranging from water to the heaviest debris-laden viscous oils. The GT A 50 pump can deliver a maximum of 12bar outlet pressure, benefits from water/steam annular injection on the inlet as standard and debris cutting knife to handle solids such as seaweed, plastics and ropes.
The GT A pump range is constructed from robust seawater resistant aluminum for the casings and stainless, acid proof steel internals with special seals that ensure the pump remains "dry". This hydraulically driven, positive displacement pump with low screw speed avoids further emulsification of the recovered product thus making further separation more efficient.
The special internal geometry of the GT A design ensures a gentle pumping action that will not emulsify oily water, and ensures the efficient movement of material through the unit. The pump can also handle solids up to 30mm in diameter, should the pump become clogged, it can be reversed to expel the blockage. The GT A's range of impressive features makes it well-suited to many applications, including for use as a transfer pump in oil recovery Skimmers, for emergency pumping of heavy crude, bunker oil, or bitumen, for tank cleaning, pipeline maintenance, and for sludge removal from waste oil pits.
The GT A pump range has been extensively tested in the field and has received accreditation from Bureau Veritas confirming their recovery capacities in oils of varying viscosities.
Minimum manhole diameter: 400mm
Standard hydraulic couplings:
Pressure 3/4" TEMA (or Aeroquip), female
Return 1" TEMA (or Aeroquip), male
Drain 3/8" TEMA (or Aeroquip), male
Hydraulic motor OMTS 160
Standard discharge outlet: 4" Camlock, male
| Length | 400mm |
| Width | 250mm |
| Height | 500mm |
| Weight | 49kg |
| Hydraulic Flow | 160 max l/min |
| Hydraulic Pressure | 210 max bar |
| Power Requirement | 56 max kW |
| Discharge Pressure | 12 bar |
